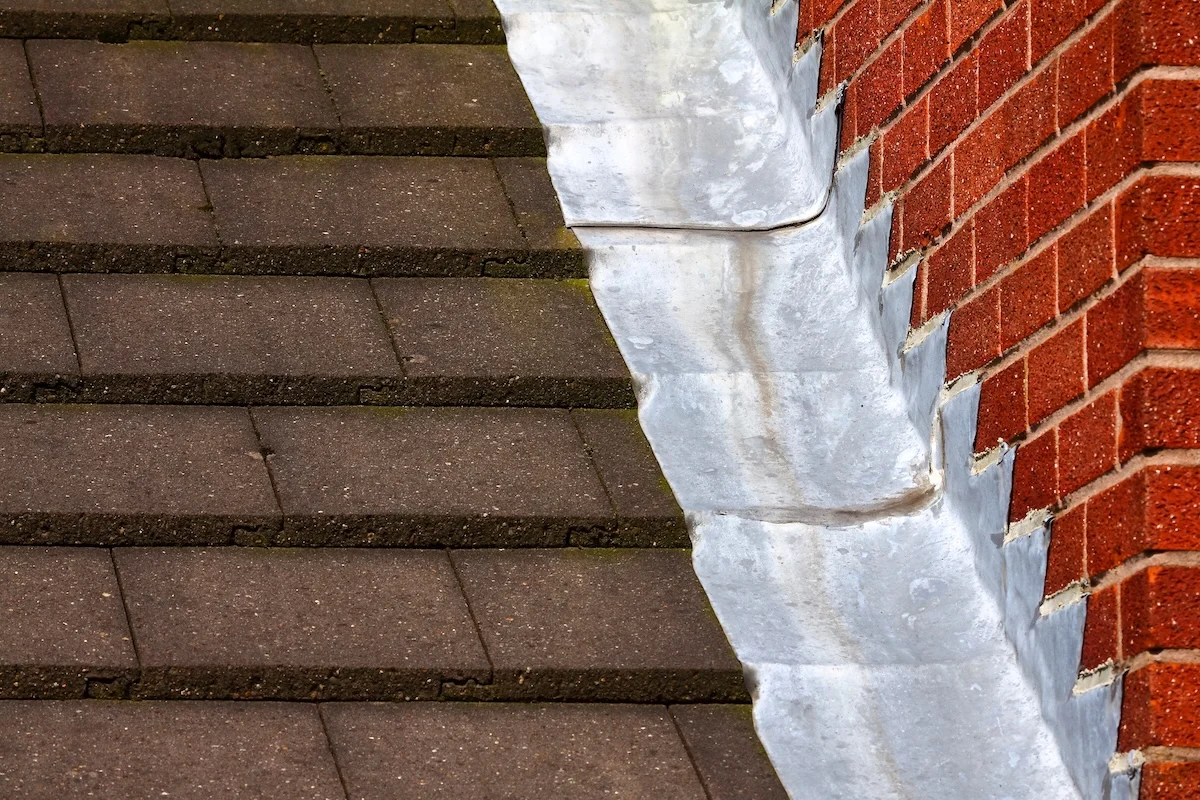

The Impermeable Barrier: A Systemic Analysis of Building Envelope Integrity

How to avoid improper flashing risks in the architectural hierarchy of needs, the diversion of liquid water remains the most critical function of a building’s exterior skin. While structural failures are often spectacular and immediate, moisture-related degradation is insidious, operating on a timeline of years or decades. At the center of this battle against entropy is flashing—the thin, often overlooked strips of material that bridge the gaps between disparate building components. Whether at a window sill, a roof valley, or a masonry shelf angle, flashing is the primary defense mechanism against the persistent pressure of gravity and wind-driven rain.

The modern building envelope has transitioned from a “mass wall” philosophy—where thick brick or stone absorbed and slowly released moisture—to a “barrier and drainage” philosophy. Today’s lightweight assemblies rely on thin membranes and precise geometry to manage water. This shift has exponentially increased the stakes of installation. A single poorly executed lap or a missed end-dam can channel thousands of gallons of water into a wall cavity over the life of a structure. Consequently, the mastery of flashing is not merely a trade skill; it is a fundamental requirement for risk mitigation in contemporary construction.

To achieve long-term durability, one must move beyond the “caulk-fix” mentality. Caulks and sealants are secondary defenses with finite lifespans; flashing is a permanent structural element. Understanding the physics of surface tension, capillary action, and hydrostatic pressure is essential for any professional seeking to preserve the structural and financial integrity of a real estate asset. This analysis explores the technical nuances, systemic failures, and rigorous methodologies required to ensure that the building’s most vulnerable points remain its most secure.

Understanding how to avoid improper flashing risks

To address how to avoid improper flashing risks, one must first acknowledge the “hidden” nature of the component. However, building science dictates that water will eventually find any path of least resistance.

A multi-perspective view of these risks involves the intersection of material science and human error. From a material standpoint, the risk is often “compatibility.” For example, using a rubberized asphalt flashing tape in direct contact with a flexible PVC window flange can lead to plasticizer migration, causing the adhesive to liquefy and fail. From a human perspective, the risk is “sequencing.”

Oversimplification in this domain often manifests as an over-reliance on “universal” products. There is no single tape or metal that is appropriate for every climate or substrate. Managing these risks requires a “Systemic Redundancy” approach: designing the flashing so that even if a primary sealant fails, the geometry of the metal or membrane continues to direct water toward the exterior via gravity. This “defensive geometry” is the hallmark of high-performance construction.

The Evolution of Moisture Management: From Lead to Liquid

How to avoid improper flashing risks historically, flashing was the province of master metalsmiths. Lead, copper, and tin were the primary materials, chosen for their malleability and longevity. These systems relied on mechanical joints—standing seams and solder—to create a continuous barrier. In many 19th-century buildings, these copper flashings remain functional today, a testament to the durability of noble metals.

The mid-20th century introduced synthetic alternatives: aluminum, galvanized steel, and eventually, bitumen-based “peel-and-stick” membranes. While these materials lowered costs and reduced the need for specialized labor, they introduced new variables such as UV degradation and adhesive fatigue. This evolution reflects a broader trend toward “seamlessness,” though it demands even stricter adherence to substrate cleanliness and temperature constraints.

Conceptual Frameworks and Mental Models for Water Shedding How To Avoid Improper Flashing Risks

Professional waterproofers use specific cognitive tools to evaluate the efficacy of a flashing detail before it is installed.

1. The “Gravity-First” Hierarchy

This model dictates that every layer of the building must overlap the layer below it like a fish scale. Any violation of this—a “reverse lap”—is treated as a catastrophic failure point. It assumes that if a bucket of water were poured onto any part of the wall, there should be no point where it could enter the structure without moving “uphill.”

2. The “Capillary Break” Mental Model

Water can move upward against gravity through narrow gaps (capillary action). This framework requires designers to intentionally create “gaps” or “drips” that are large enough to break the surface tension of water. An example is the “Drip Edge” on a roof or a “Hem” on a window head flashing.

3. The “Four Barriers” Alignment

Moisture management cannot be isolated from the other three critical boundaries: Air, Vapor, and Thermal. This model ensures that the flashing does not inadvertently create a “vapor trap” (where moisture is sealed inside a wall and cannot dry) or an “air leak” that carries humid air to a cold surface.

Categories of Flashing Systems and Material Trade-offs

Selecting a flashing material involves balancing chemical compatibility, thermal expansion, and mechanical durability.

Decision Logic: Metal vs. Membrane

In “concealed” applications (like a masonry cavity wall), a flexible membrane is often preferred because it can accommodate the settling of the building without cracking. In “exposed” applications (like a roof-to-wall transition), metal is mandatory to resist UV radiation and physical damage from wind and snow.

Real-World Scenarios: Complex Intersections and Logistics

The “Kick-out” Flashing Failure

Where a roof eave meets a vertical sidewall, water runs down the roof and often pours behind the siding of the wall. Improper flashing here is a leading cause of rotted wall sheathing. The solution is a “Kick-out Flashing,” a specific diverter that pushes the water away from the wall and into the gutter.

The High-Rise Window Sill

In high-wind environments, water is pushed upward against the window sill. Managing this involves an “End-Dam”—the flashing at the ends of the sill must be turned up 1-2 inches to create a “pan.” Without end-dams, water will simply run off the ends of the sill and into the wall cavity.

The Parapet Cap Expansion

On a long commercial parapet, metal caps expand and contract with the sun. If the flashing is screwed down tightly without “slip-joints,” the metal will buckle and the sealants will tear. Proper management requires “cleated” attachments that allow the metal to move while remaining watertight.

Economic Dynamics: The Cost of Preventive Precision

The economics of flashing are heavily skewed toward the cost of failure rather than the cost of material.

Opportunity Cost: The decision to use a $15 roll of generic tape instead of a $60 roll of high-performance flashing for a window sill represents a negligible saving on a $500,000 project, yet it creates a potential $50,000 liability. In the luxury residential market, improper flashing is the single most common cause of “Construction Defect” litigation.

Tools, Strategies, and Support Systems for Quality Control How To Avoid Improper Flashing Risks

• Mock-up Testing: Before a project begins, a “Project Mock-up” should be built. This allows the team to test the sequencing of the flashing at complex corners and “hose-test” the assembly for leaks.

• Thermal Imaging: Post-installation, infrared cameras can detect moisture behind walls by identifying “evaporative cooling” signatures, catching leaks before they become visible rot.

• The “Rule of 1/4 Inch”: A strategy where every horizontal flashing must have at least a 1/4-inch per foot slope to ensure water does not “pond” on the membrane.

• Sequencing Maps: A visual document provided to sub-contractors showing exactly which layer (WRB, Flashing, Window, Tape) goes first, second, and third.

The Risk Landscape: Taxonomy of Compounding Failures

Improper flashing risks are rarely isolated; they catalyze other systemic problems.

1. Galvanic Corrosion: When two dissimilar metals (like aluminum flashing and copper-treated wood) touch in the presence of moisture, the aluminum will literally dissolve through an electrochemical reaction.

2. Structural Rot (Adjuvant Effect): Moisture weakens the wood fibers, which then attracts wood-boring insects. The flashing failure becomes a structural failure.

3. Indoor Air Quality (IAQ) Degradation: Hidden moisture promotes the growth of Stachybotrys (black mold) within the wall. This can happen for years without the occupant seeing a drop of water.

4. Efflorescence and Spalling: In masonry, failed flashing allows water to stay in the brick. When it freezes, it expands, causing the face of the brick to “spall” or pop off.

Governance, Maintenance, and Long-Term Adaptation How To Avoid Improper Flashing Risks

Flashing is a “set-and-forget” component, but its supporting elements—sealants and gutters—require a governance cycle.

The Stewardship Checklist

• Semi-Annual: Clean gutters. Clogged gutters cause water to “back up” under the roof shingles and over the top of the eave flashing.

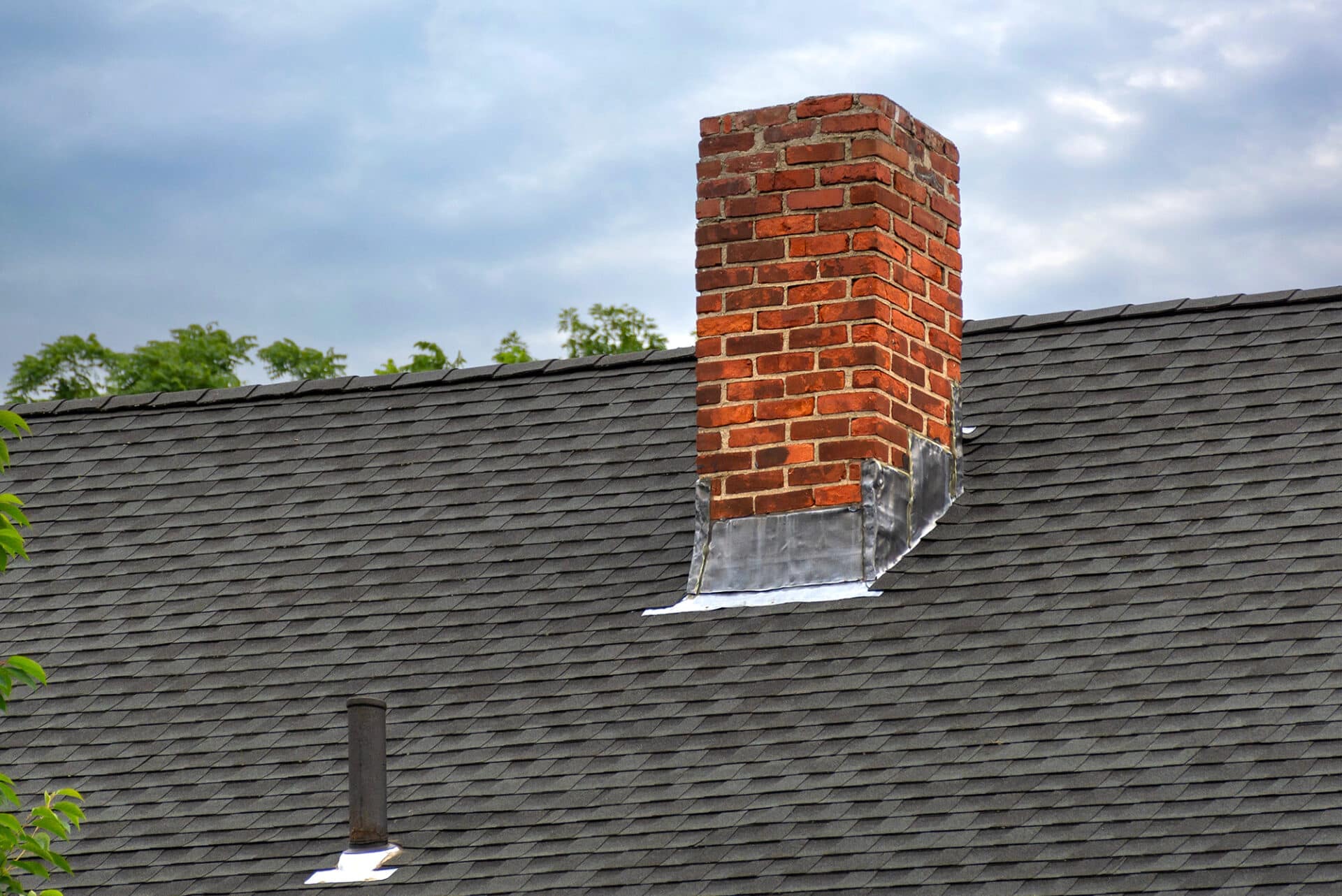

• 5-Year Cycle: Inspect “exposed” flashing sealants (like chimney shoulders). If the sealant is cracked, it must be removed and replaced.

• Post-Storm Protocol: After a major wind event, inspect the “Drip Edges” and “Sill Flashings” to ensure the wind has not “uplifted” the metal, creating a reverse-lap.

Measurement, Tracking, and Evaluation Metrics

• ASTM E1105 Testing: A field test where a “pressure chamber” is attached to a window on-site and water is sprayed on the exterior to simulate a 50-mph rainstorm.

• Electronic Leak Detection (ELD): Used on flat roofs; a technician uses an electric current to find the exact “pinhole” in a flashing membrane that is causing a leak.

• Moisture Content Mapping: Using a moisture meter to track the “baseline” moisture levels in a wall assembly over time.

Common Misconceptions and Industry Myths How To Avoid Improper Flashing Risks

• Myth: “Caulk can replace flashing.”

  • Correction: Caulk is a maintenance item with a 5-10 year life. Flashing is a structural item. If the flashing geometry is wrong, no amount of caulk will save the building.

• Myth: “Self-healing tapes seal around every nail.”

  • Correction: While bitumen does “ooze” around a nail, it does not create a gasket in high-pressure wind events. Mechanical fasteners should be kept out of “water-shedding” zones whenever possible.

• Myth: “Aluminum is fine for masonry.”

  • Correction: The high pH of wet mortar will corrode aluminum. Only copper or stainless steel should be used for “through-wall” masonry flashing.

Ethical and Practical Considerations in Building Science

There is an ethical dimension to “hiding” mistakes. Because flashing is buried, the “Standard of Care” relies entirely on the integrity of the installer and the rigor of the third-party inspector. As we move toward more sustainable buildings, the “embodied carbon” of a structure is wasted if the building’s lifespan is cut in half by avoidable water damage. Durable flashing is, therefore, a core component of environmental stewardship.

Conclusion: Synthesis of Geometry and Materiality How To Avoid Improper Flashing Risks

Understanding how to avoid improper flashing risks is a transition from seeing a building as a collection of parts to seeing it as a fluid-dynamic system. It requires a paradoxical mindset: the architect must be a dreamer of forms but a cynic of materials. One must assume that every material will eventually shrink, every sealant will eventually crack, and every storm will eventually test the limits of the enclosure. The only defense that endures is the relentless application of gravity-compliant geometry and chemically compatible materials. By mastering these invisible intersections, we move from the era of “disposable construction” to an era of enduring architectural legacy.
