The Invisible Leak: A Masterclass in Thermal Bridge Mitigation and Envelope Integrity

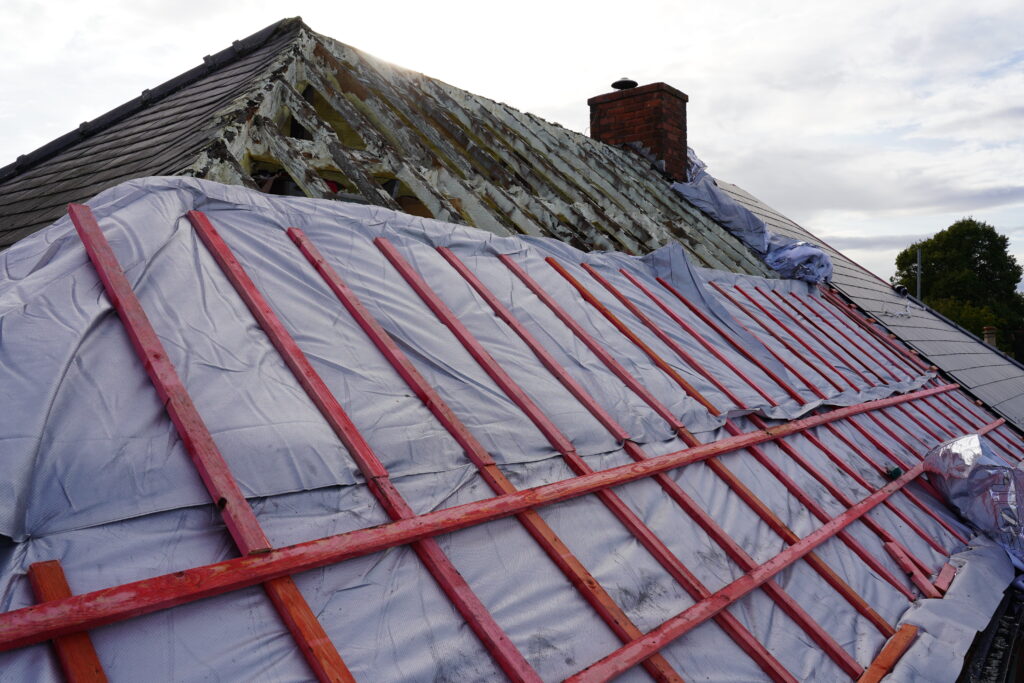

How to manage thermal bridging problems the modern building envelope is a study in thermodynamic tension. As we move toward increasingly stringent energy standards and “Passive House” levels of performance, the traditional methods of insulation are proving insufficient. We have reached a point of diminishing returns where simply adding more inches of fiberglass or mineral wool to a wall cavity no longer yields proportional energy savings. This phenomenon is largely due to the presence of thermal bridges—localized areas of high thermal conductivity that bypass the primary insulation layer, acting as energy “short circuits.”

Thermal bridging is not merely a matter of wasted heat; it is a fundamental threat to the longevity of the built environment. When heat migrates through a structural member, such as a steel beam or a concrete slab edge, it creates a temperature differential that often drops below the dew point. This results in interstitial condensation, a silent precursor to mold growth, rot, and the eventual degradation of structural steel or timber. The challenge for the modern architect and engineer is no longer just about “insulating” but about “isolating”—creating a continuous thermal barrier that is uncompromised by the building’s own skeleton.

Solving these issues requires a shift in perspective from macro-level R-values to micro-level structural junctions. It involves an analytical inquiry into the molecular behavior of high-performance polymers, the mechanical properties of structural aerogels, and the precision of 3D thermal modeling. This study provides an exhaustive examination of the methodologies and technological frameworks currently defining the vanguard of envelope engineering, offering a definitive reference for those tasked with designing and maintaining the high-authority structures of the next century.

Understanding “how to manage thermal bridging problems”

The professional inquiry into how to manage thermal bridging problems is often hampered by the oversimplification of “good” versus “bad” materials. In a high-authority engineering context, management is not about elimination—which is often physically impossible—but about “Control and Offset.” A bridge is manageable if its heat loss is accounted for in the building’s metabolic model and if its surface temperature is maintained above the threshold for condensation.

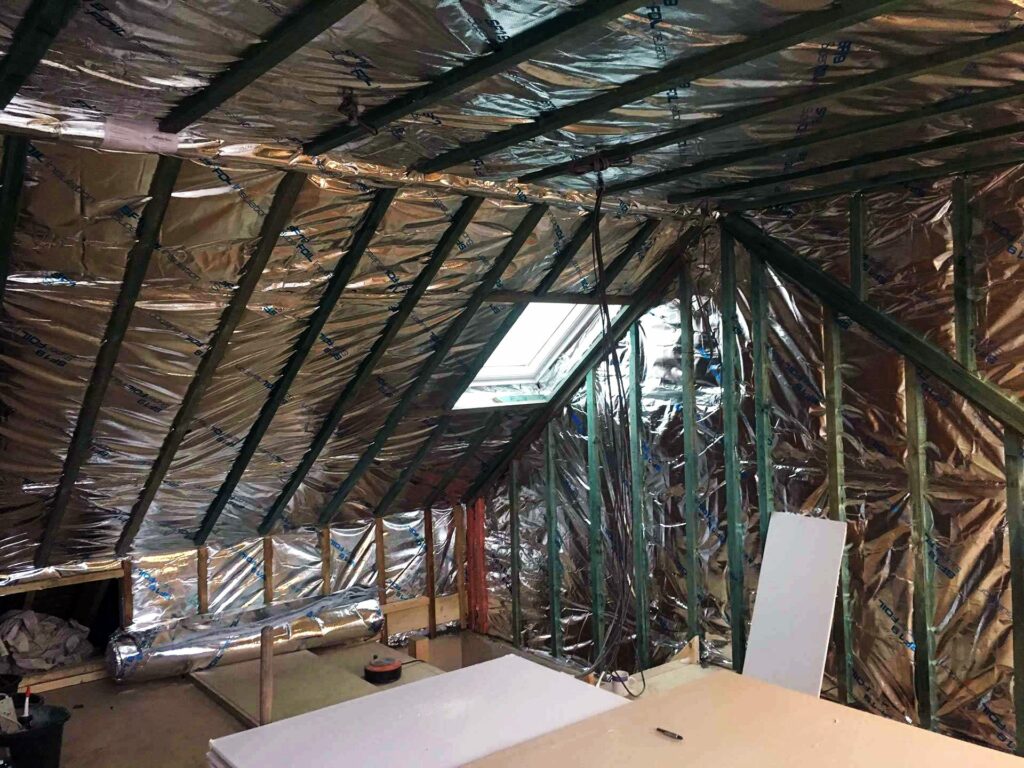

A common misunderstanding in the industry is the “R-value Fallacy.” Many believe that if a wall has R-30 insulation between studs, the wall itself is R-30. However, the timber or steel studs may only be R-1 or R-0.05, respectively. In a steel-framed building, these bridges can reduce the effective R-value of a wall by as much as 50%. Therefore, the best plans for managing thermal bridging prioritize “Continuous Exterior Insulation” (CI) over cavity insulation, effectively wrapping the building in a blanket that keeps the structural “bones” warm and dry.

Furthermore, we must address the “Geometric vs. Material” distinction. A bridge can occur because of a material (a steel bolt) or because of a shape (a building corner). Geometric bridges occur where the exterior surface area is significantly larger than the interior surface area, causing the corner to lose heat faster than the flat wall. To master how to manage thermal bridging problems, one must move beyond the architectural drawing and into the 3D thermal simulation, where these invisible “cold spots” are visualized and quantified before the first shovel hits the ground.

The Evolution of Thermal Continuity

How to manage thermal bridging problems historically, building mass was the primary thermal regulator. The thick masonry walls of the pre-industrial era provided “Thermal Mass,” which buffered temperature swings. However, these walls were also massive thermal bridges; heat moved through them freely, but their sheer thickness slowed the process enough to be tolerable.

The introduction of the “Cavity Wall” in the mid-20th century was the first step toward modern thermal management. By creating an air gap, builders broke the direct path for moisture and some heat. But as we moved to steel and reinforced concrete, we introduced highly conductive materials that penetrated the insulation layer. The “Balcony Slab” became the classic villain of thermal engineering—a continuous concrete tongue that licked the freezing outdoor air and pulled that cold directly into the warm interior floor.

Today, we are in the era of “Structural Thermal Breaks.” We no longer accept the bridge as an inevitability. We now utilize high-strength, low-conductivity inserts—made of stainless steel, fiberglass, or specialized polymers—that can carry the load of a balcony or a canopy while effectively “cutting” the thermal path.

Conceptual Frameworks and Thermodynamic Mental Models How To Manage Thermal Bridging Problems

To manage bridge risks, professionals utilize several thermodynamic frameworks.

1. The Isotherm Logic

This model views the building envelope as a series of temperature lines (isotherms). A healthy envelope has “Parallel Isotherms”—neat, straight lines that stay within the insulation. A thermal bridge causes these lines to “bunch” and dip toward the interior. The goal of mitigation is to “flatten” the isotherms to keep the interior structural surfaces warm.

2. The Psi-Value ($\psi$) Framework

While R-value measures a flat surface, the Psi-value measures the “Linear Thermal Transmittance” of a junction (like a window sill or a wall-to-floor joint). This framework forces the designer to look at the length of the bridge. A plan for an authority-grade building aims for “Thermal Bridge Free” design, typically defined as having junction Psi-values below 0.01 W/mK.

3. The Condensation “Danger Zone”

This framework is based on the Psychrometric Chart. It identifies the “Critical Temperature”—the point at which the air in a specific room will reach 100% relative humidity upon touching a cold surface. Managing the bridge is less about energy and more about ensuring the surface temperature (Tsi​) never reaches this dew point (Tdp​).

Primary Categories of Thermal Bridges and Mitigation Strategies

Addressing how to manage thermal bridging problems requires a taxonomy of the bridge types and their specific mechanical remedies.

Real-World Application Scenarios How To Manage Thermal Bridging Problems

The Modernist Glass High-Rise

Constraints: Floor-to-ceiling glass; cantilevered concrete balconies. Selection: Structural thermal break modules with stainless steel reinforcement. Strategy: By inserting a 3-inch thick block of high-density insulation between the interior slab and the exterior balcony, the interior floor remains at 68°F even when the balcony is at 10°F. Without this, the floor near the glass would be 45°F, leading to condensation and “puddling” under the carpet.

The Industrial Retrofit (Brick Masonry)

Constraints: Historic brick facade cannot be altered; interior insulation being added. Selection: “Vapor-Open” insulation with timber-standoff furring. Failure Mode: If the floor joists are left embedded in the brick while the wall is insulated from the inside, the joist ends become the only path for heat to leave. They become “cold fingers” that rot within the wall. The solution is to cut the joists and support them on an independent interior frame, “decoupling” them from the cold masonry.

The Passive House Commercial Warehouse

Constraints: Large metal-clad walls; multiple steel-to-steel connections. Selection: Thermal “Shims” or “Break Plates” made of high-compressive-strength Fabreeka or phenolic resin. Decision Point: Every steel bolt is a point bridge. By placing a 1/2″ phenolic shim between the steel plate and the building, the heat flow is reduced by over 70%, preventing the bolt heads from “sweating” inside the warehouse.

Economics of the Envelope: Cost and Resource Dynamics

The economic logic of how to manage thermal bridging problems is found in the “Lifecycle vs. Capital” calculation.

The “Opportunity Cost” of ignoring thermal bridges is most felt in the maintenance reserve. A building that develops mold in its wall cavities due to interstitial condensation will require an envelope remediation that often exceeds 10% of the building’s total value—a cost that could have been avoided with a 1% increase in the initial construction budget for thermal breaks.

Tools, Strategies, and Support Infrastructures How To Manage Thermal Bridging Problems

To implement a successful mitigation plan, the following infrastructure is required:

• THERM / PSI-Value Software: Developed by LBNL, these tools allow engineers to see heat maps of a junction and calculate the exact Psi-value.

• Aerogel Blankets: Used for ultra-thin bridges where space is limited (e.g., window reveals).

• Thermal Shims: Non-compressible plastic spacers used in steel-to-steel connections.

• Stainless Steel Rebar: Used specifically at thermal break junctions because it is 1/3 as conductive as carbon steel.

• Vacuum Insulated Panels (VIPs): Providing R-30 in a 1-inch thickness, ideal for managing bridges at door thresholds.

• Infrared Thermography: Used during commissioning to verify that the “as-built” envelope doesn’t have any unexpected cold spots.

Risk Landscape: Failure Modes and Compounding Stressors

Mitigation strategies themselves can introduce risks if not governed correctly.

1. Structural Compromise: If a structural thermal break is not properly rated for the shear and moment loads of a balcony, the balcony can sag or fail.

2. The “Blind Spot” Bridge: Focusing so much on the balconies that the parapet at the roof is ignored. A bridge at the parapet can cause condensation that drips down into the ceiling insulation, hiding the problem for years.

3. Fastener Corrosion: If point bridges (screws) are used without thermal caps in a high-humidity environment (like a swimming pool), the temperature differential can cause them to rust 4x faster than expected.

4. Sequencing Errors: If the exterior insulation is installed before the structural breaks are properly sealed, it can create a “chimney effect” where cold air bypasses the insulation.

Governance, Maintenance, and Long-Term Adaptation

The management of bridges is a long-term governance task, not a one-time installation.

The Maintenance Lifecycle

• Annual Thermal Scan: Utilizing a drone with a thermal camera to inspect the facade for heat “plumes” that indicate failing breaks or damaged insulation.

• Humidity Monitoring: Installing sensors in “at-risk” junctions (like the floor-to-wall joint) to alert the facility manager if interstitial humidity exceeds 70%.

• Adjustment Triggers: If the interior occupancy changes (e.g., from an office to a high-humidity yoga studio), the thermal bridges must be re-evaluated to ensure they can handle the higher dew point.

Measurement, Tracking, and Evaluation How To Manage Thermal Bridging Problems

How do we quantify the success of how to manage thermal bridging problems?

Leading Indicators:

• The fRsi Metric: The “Temperature Factor.” A junction should have an fRsi above 0.70 to prevent mold in most climates.

• Linear Heat Loss ($\psi$): Total length of junctions multiplied by their Psi-values.

Lagging Indicators How To Manage Thermal Bridging Problems:

• Energy Intensity (EUI): Does the building’s actual utility usage match the “Bridge-Free” model?

• Mold Incidence: Zero reports of surface condensation or musty odors over a 10-year period.

Common Misconceptions and Oversimplifications

• “Triple-pane windows solve all thermal bridging.” False. If the window frame is not thermally broken or if the window is installed in line with the studs rather than the insulation, the “Installation Bridge” can negate the benefit of the glass.

• “Wood doesn’t bridge.” False. While better than steel, a 2×6 timber stud is still a significant bridge in a Passive House design.

• “Spray foam is a magic fix.” Spray foam is excellent for air sealing, but it cannot structurally break a steel beam.

• “Continuous insulation is too expensive.” When factoring in the reduced HVAC size and the increased longevity of the facade, CI is usually the most cost-effective decision in the building’s 50-year lifecycle.

• “Condensation is only a winter problem.” False. In hot-humid climates, a thermal bridge can pull cold air from the AC into the wall, causing exterior moisture to condense inside the wall.

Ethical and Environmental Considerations How To Manage Thermal Bridging Problems

The “Carbon Debt” of thermal bridge mitigation must be acknowledged. Many high-performance breaks and vacuum panels utilize plastics and rare-earth materials that are energy-intensive to manufacture. However, the “Operational Carbon” saved over the building’s life—and the prevention of premature demolition due to mold and rot—makes mitigation an ethical imperative. Furthermore, as the world moves toward “Electrification,” building envelopes must be near-perfect to allow heat pumps to operate efficiently during peak winter loads.

Conclusion

Mastering how to manage thermal bridging problems is the hallmark of the modern building professional. It is a transition from the “Art of Decoration” to the “Science of the Envelope.” As our global energy crisis deepens, the difference between a building that lasts and a building that fails will be found in the millimeters of separation at the junctions. By treating every structural connection as a thermodynamic opportunity, we create a built environment that is not only efficient but fundamentally resilient against the invisible forces of heat and moisture.
